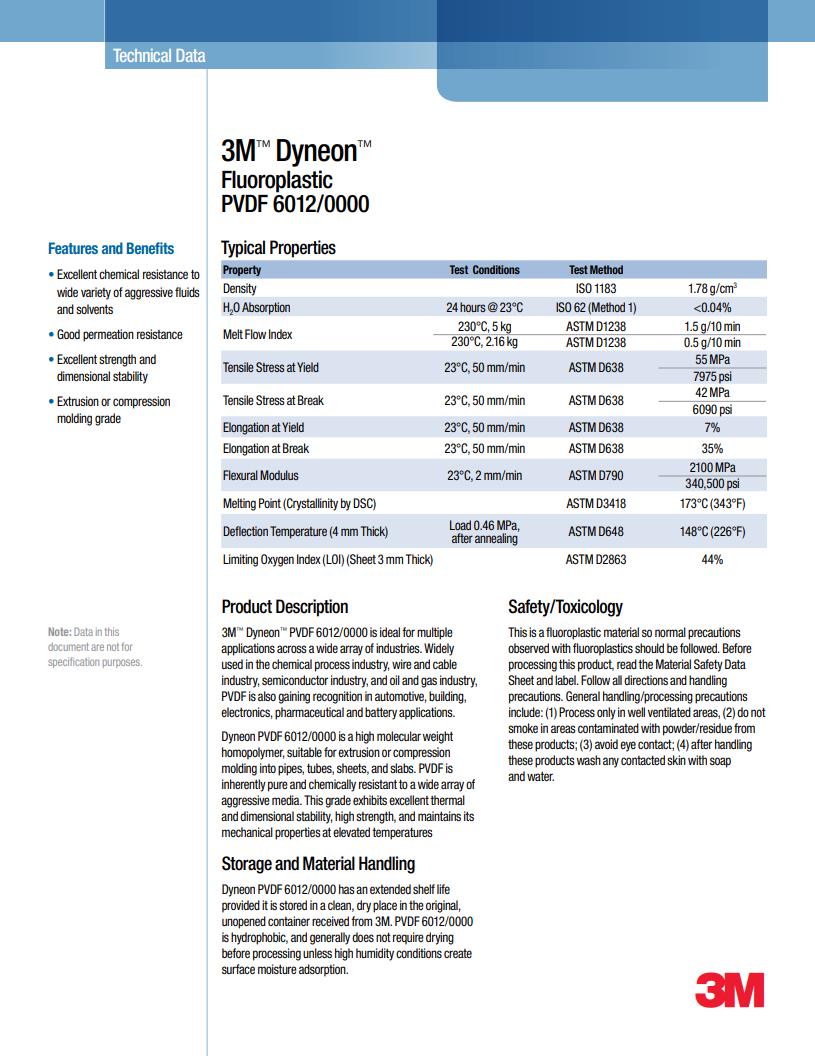

3M™ Dyneon™ Fluoroplastic PVDF 6012/0000
聚偏二氟乙烯 (PVDF)
3M Advanced Materials Division
3M™ Dyneon™ PVDF 6012/0000 is ideal for multiple applications across a wide array of industries. Widely used in the chemical process industry, wire and cable industry, semiconductor industry, and oil and gas industry, PVDF is also gaining recognition in automotive, building, electronics, pharmaceutical and battery applications.
Dyneon PVDF 6012/0000 is a high molecular weight homopolymer, suitable for extrusion or compression molding into pipes, tubes, sheets, and slabs. PVDF is inherently pure and chemically resistant to a wide array of aggressive media. This grade exhibits excellent thermal and dimensional stability, high strength, and maintains its mechanical properties at elevated temperatures.
Features and Benefits
•Excellent chemical resistance to wide variety of aggressive fluids and solvents
•Good permeation resistance
•Excellent strength and dimensional stability
•Extrusion or compression molding grade
材料特性:纯度高、高分子量、高强度、抗溶剂、均聚物、耐化学品良好、热稳定良好、High Dimensional Stability
材料用途:电池、电气/电子应用领域、电线电缆应用、管道系统、管件、建筑材料、片材、汽车领域的应用、石油/天然气用品、压缩平板
加工方法:挤出、压缩模塑
供货地区:北美洲、欧洲
物理性能 | 额定值 | 单位制 | 测试方法 |
密度 | 1.78 | g/cm³ | ISO 1183 |
熔流率(熔体流动速率) | ASTM D1238 | ||
230℃/2.16 kg | 0.50 | g/10 min | |
230℃/5.0 kg | 1.5 | g/10 min | |
吸水率(24 hr,23℃) | < 0.040 | % | ISO 62 |
机械性能 | 额定值 | 单位制 | 测试方法 |
抗张强度1 | ASTM D638 | ||
屈服,23℃ | 55.0 | MPa | |
断裂,23℃ | 42.0 | MPa | |
伸长率1 | ASTM D638 | ||
屈服,23℃ | 7.0 | % | |
断裂,23℃ | 35 | % | |
弯曲模量2(23℃) | 2100 | MPa | ASTM D790 |
热性能 | 额定值 | 单位制 | 测试方法 |
载荷下热变形温度 | ASTM D648 | ||
0.45 MPa,已退火,4.00 mm | 148 | ℃ | |
-- | -- | -- | |
熔融峰值温度 | 173 | ℃ | ASTM D3418 |
可燃性 | 额定值 | 单位制 | 测试方法 |
UL 阻燃等级 | V-0 | UL 94 | |
极限氧指数(3.00 mm) | 44 | % | ASTM D2863 |
备注 150 mm/min 22.0 mm/min |
