Ultramid® A 218W V15 NATURAL
聚酰胺 66 （尼龙66）PA66-GF15
德国巴斯夫-BASF Corporation
Ultramid® A 218W V15 Natural is a polyamide 66, reinforced with 15% of glass fibre, heat stabilized, for injection moulding. This grade offers an improved hydrolisis resistance, as well as an excellent combination between thermal and mechanical properties.
增强材料：玻璃纤维15%增强
含添加剂：热稳定剂
材料特性：易流动、Heat Stabilized - Organic、尺寸稳定
材料用途：泵件、大型家用电器和小型家用电器、阀门/阀门部件、工业应用、消费品应用领域
加工方法：自然色粒子注射成型
供货地区：北美洲、非洲和中东、拉丁美洲、亚太地区
中国代理：苏州希普能工程塑料

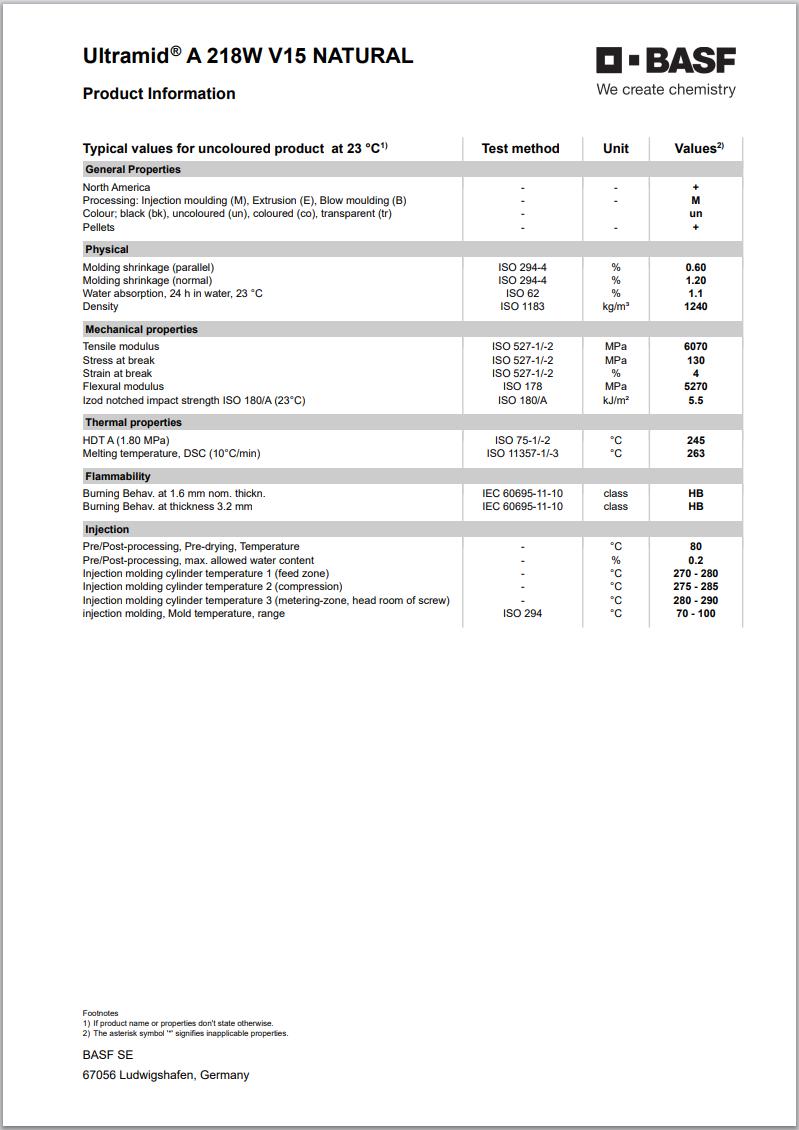

Ultramid® A 218W V15 NATURAL 加工参数表
| 物理性能 | 额定值 | 单位制 | 测试方法 |
| 密度 | 1.24 | g/cm³ | ISO 1183 |
| 收缩率 | ISO 294-4 | ||
| 垂直 | 1.2 | % | |
| 流动 | 0.60 | % | |
| 吸水率(24 hr,23℃) | 1.1 | % | ISO 62 |
| 机械性能 | 额定值 | 单位制 | 测试方法 |
| 拉伸模量 | 6070 | MPa | ISO 527-1 |
| 拉伸应力(断裂) | 130 | MPa | ISO 527-2 |
| 拉伸应变(断裂) | 4.0 | % | ISO 527-2 |
| 弯曲模量 | 5270 | MPa | ISO 178 |
| 冲击性能 | 额定值 | 单位制 | 测试方法 |
| 悬壁梁缺口冲击强度(23℃) | 5.5 | kJ/m² | ISO 180/A |
| 热性能 | 额定值 | 单位制 | 测试方法 |
| 载荷下热变形温度(1.8 MPa,未退火) | 245 | ℃ | ISO 75-2/A |
| 熔融温度 | 263 | ℃ | ISO 11357-3 |
| 可燃性 | 额定值 | 单位制 | 测试方法 |
| 可燃性等级 | IEC 60695-11-10,-20 | ||
| 1.6 mm | HB | ||
| 3.2 mm | HB | ||
| 注射 | 额定值 | 单位制 | |
| 干燥温度 | 80 | ℃ | |
| 建议的最大水分含量 | 0.20 | % | |
| 料筒后部温度 | 270 到 280 | ℃ | |
| 料筒中部温度 | 275 到 285 | ℃ | |
| 料筒前部温度 | 280 到 290 | ℃ | |
| 模具温度 | 70 到 100 | ℃ | |
| 注射说明 The material is supplied in airtight bags, ready for use. In case that the virgin material has absorbed moisture, it must be dried with a dehumidified air drying equipment, dew point mini -20℃. Recommended time 2-4h Injection Advice: For reinforced polyamides, BASF SE recommends the use of steel with a high content of carbon, and purified for polishing, to avoid or limit the abrasion. For example: X38CrMoV5-1 (EN Norm) - 1.2367 /1.2343 (DIN Norm) or X160CrMoV12 (EN Norm) - 1.2601 /1.2379 (DIN Norm). In the case of high requirements on surface quality a mould temperature of up to 120℃ can be considered. The processing parameters like processing temperatures are a recommendation and can be adjusted in function of injection machine size, part geometry / design |
|||
