Ultramid® A 225F NATURAL
聚酰胺 66 （尼龙66）PA66
德国巴斯夫-BASF Corporation
Ultramid® A 225F Natural is an unfilled polyamide 66, medium viscosity, for injection moulding, with a special crystallizing agent, for very fast cycles. This grade offers a good combination between primary properties of the unreinforced polyamide 66 and processing properties leading to increased productivity. These performances are associated with excellent dimensional stability, and excellent filling qualities. The UL94 V2 rating at 0.4mm makes that the product is particularly used in electrical applications.

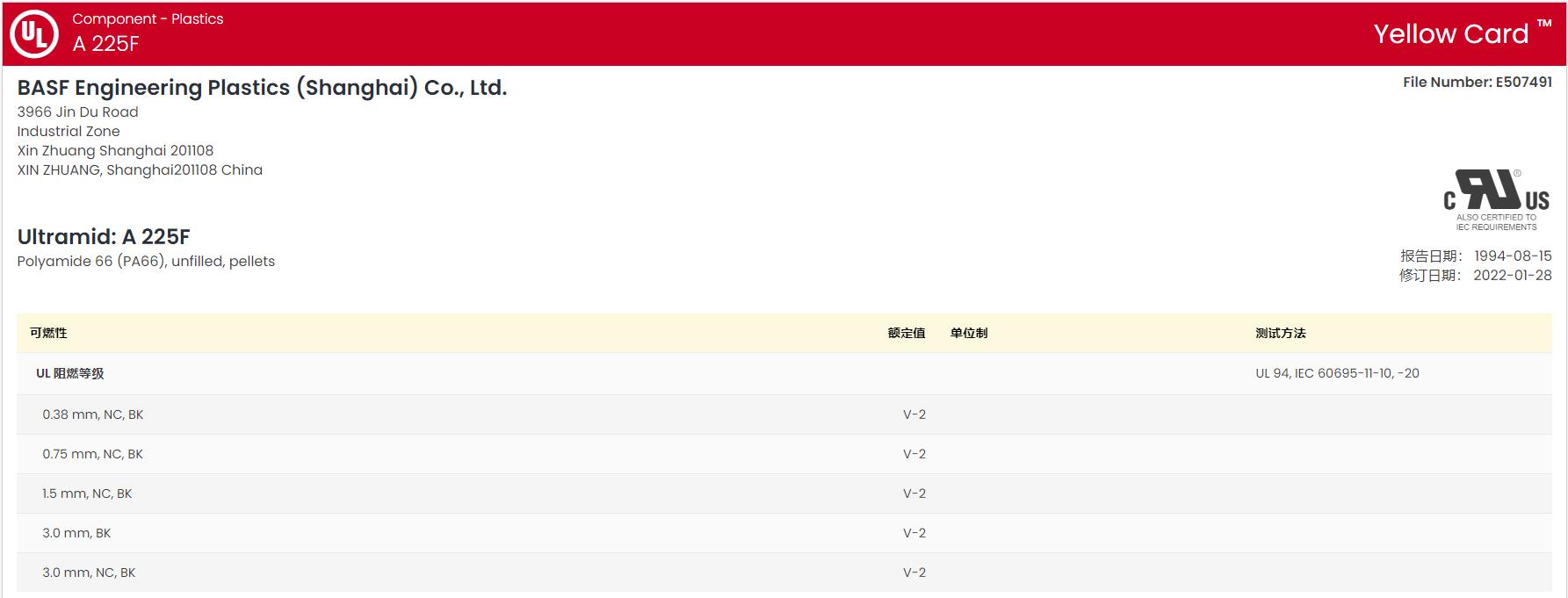

黄卡号码：E507491-104288096
材料特性：易流动、成型周期快、尺寸稳定、易脱模
材料用途：大型家用电器和小型家用电器、电气/电子应用领域、阀门/阀门部件、工业应用、消费品应用领域
加工方法：自然色粒子注射成型
供货地区：北美洲、非洲和中东、拉丁美洲
中国代理：苏州希普能工程塑料
Ultramid® A 225F NATURAL 加工参数表
| 物理性能 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| 密度 | 1.14 | -- | g/cm³ | ISO 1183 |
| 收缩率 | ISO 294-4 | |||
| 垂直 | 1.3 | -- | % | |
| 流动 | 1.3 | -- | % | |
| 吸水率(24 hr,23℃) | 1.1 | -- | % | ISO 62 |
| 机械性能 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| 拉伸模量 | 3600 | 1600 | MPa | ISO 527-1 |
| 抗张强度 | ||||
| 屈服4 | 85.0 | 50.0 | MPa | ASTM D638 |
| 屈服 | 95.0 | 60.0 | MPa | ISO 527-2/50 |
| 断裂 | 70.0 | 50.0 | MPa | ISO 527-2 |
| 拉伸应变 | ||||
| 屈服 | 5.0 | 25 | % | ISO 527-2/50 |
| 断裂4 | 14 | > 200 | % | ASTM D638 |
| 断裂 | 20 | 100 | % | ISO 527-2 |
| 弯曲模量 | 3150 | 1400 | MPa | ISO 178 |
| 弯曲应力 | 125 | 55.0 | MPa | ISO 178 |
| 冲击性能 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| 简支梁缺口冲击强度(23℃) | 4.0 | 10 | kJ/m² | ISO 179/1eA |
| 简支梁无缺口冲击强度(23℃) | 无断裂 | 无断裂 | ISO 179/1eU | |
| 悬壁梁缺口冲击强度(23℃) | 5.0 | 12 | kJ/m² | ISO 180/A |
| 无缺口悬臂梁冲击(23℃) | 135 | -- | kJ/m² | ASTM D256 |
| 热性能 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| 载荷下热变形温度 | ||||
| 0.45 MPa,未退火 | 200 | -- | ℃ | ISO 75-2/B |
| 1.8 MPa,未退火 | 75.0 | -- | ℃ | ISO 75-2/A |
| 熔融温度 | 263 | -- | ℃ | ISO 11357-3 |
| 电气性能 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| 表面电阻率 | -- | 4.0E+13 | ohms | IEC 62631-3-2 |
| 体积电阻率 | 4.0E+15 | 1.0E+16 | ohms·m | IEC 62631-3-1 |
| 介电强度 | IEC 60243-1 | |||
| 0.800 mm | 35 | -- | kV/mm | |
| 2.00 mm | 22 | -- | kV/mm | |
| 相对电容率(1 MHz) | 3.50 | -- | IEC 62631-2-1 | |
| 耗散因数(1 MHz) | 0.033 | -- | IEC 62631-2-1 | |
| 漏电起痕指数(解决方案 A) | 600 | 600 | V | IEC 60112 |
| 可燃性 | 干燥 | 调节后的 | 单位制 | 测试方法 |
| UL 阻燃等级 | ||||
| 0.8 mm | V-2 | -- | UL 94,IEC 60695-11-10,-20 | |
| 3.2 mm | V-2 | -- | UL 94,IEC 60695-11-10,-20 | |
| 0.40 mm | V-2 | -- | IEC 60695-11-10,-20 | |
| 1.6 mm | V-2 | -- | IEC 60695-11-10,-20 | |
| 灼热丝易燃指数(1.6 mm) | 700 | -- | ℃ | IEC 60695-2-12 |
| 注射 | 干燥 | 单位制 | ||
| 干燥温度 | 80 | ℃ | ||
| 建议的最大水分含量 | 0.20 | % | ||
| 料筒后部温度 | 265 到 275 | ℃ | ||
| 料筒中部温度 | 270 到 280 | ℃ | ||
| 料筒前部温度 | 280 到 285 | ℃ | ||
| 模具温度 | 60 到 80 | ℃ | ||
| 注射说明 The material is supplied in airtight bags, ready for use. In case that the virgin material has absorbed moisture, it must be dried with a dehumidified air drying equipment, dew point mini -20℃. Recommended time 2-4h Injection Advice: For unfilled polyamides, BASF SE recommends the use of high alloy steel with a low chromium content. For example: X38CrMoV5-1 (EN Norm) - 1.2367 /1.2343 (DIN Norm). In the case of high requirements on surface quality a mould temperature of up to 120℃ can be considered. The processing parameters like processing temperatures are a recommendation and can be adjusted in function of injection machine size, part geometry / design |
||||
